ShouChuang-Leading Continuous Conveyor Belt Dryer Manufacturer For Agricultural Product Since 1972.

Salad Drying Machine Customizedmanufacturing 1
Salad Drying Machine Customizedmanufacturing 2
Salad Drying Machine Customizedmanufacturing 3
Salad Drying Machine Customizedmanufacturing 4
Salad Drying Machine Customizedmanufacturing 5
Salad Drying Machine Customizedmanufacturing 6
Salad Drying Machine Customizedmanufacturing 7
Salad Drying Machine Customizedmanufacturing 1
Salad Drying Machine Customizedmanufacturing 2
Salad Drying Machine Customizedmanufacturing 3
Salad Drying Machine Customizedmanufacturing 4
Salad Drying Machine Customizedmanufacturing 5
Salad Drying Machine Customizedmanufacturing 6
Salad Drying Machine Customizedmanufacturing 7

Salad Drying Machine Customizedmanufacturing

Inquiry
Send your inquiry
Name
Mesh Belt Dryer
Applicable Industries
Manufacturing Plant, Farms, Food Shop
Dimension(L*W*H)
Customized
Condition
New
Type
Belt dryer

Product details of the salad drying machine


Product Specification

Condition: New

Applicable Industries: Manufacturing Plant, Farms, Food Shop

Type: Belt dryer

Dimension(L*W*H): Customized

Name: Mesh Belt Dryer


Product Information

The design of ShouChuang salad drying machine is novel in the industry. Products must be inspected by our inspection system to ensure that the quality meets industry requirements. salad drying machine is widely appraised for its stable quality.

Product Description
Salad Drying Machine Customizedmanufacturing 8

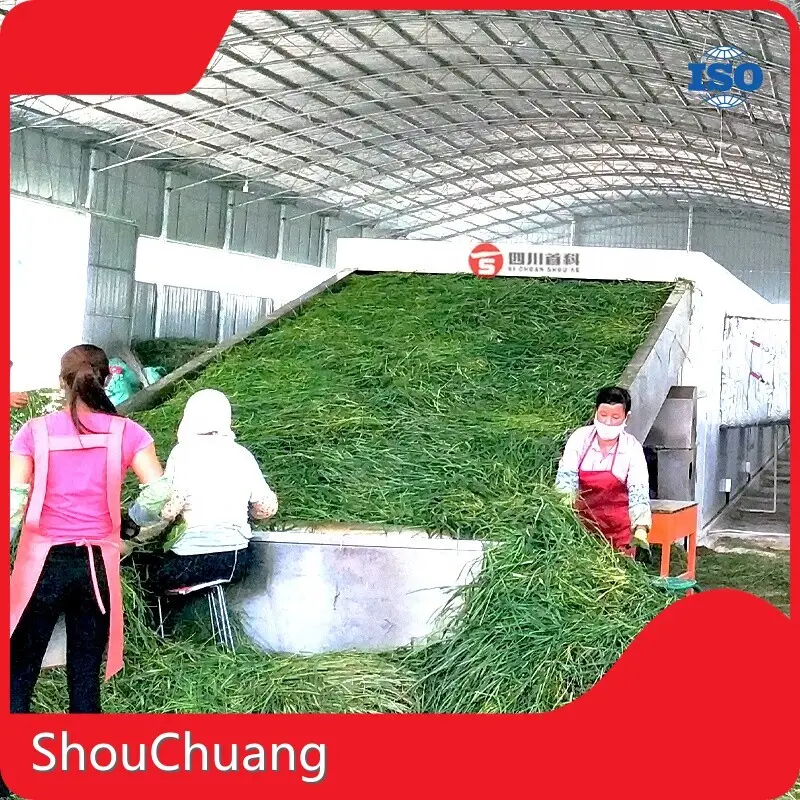

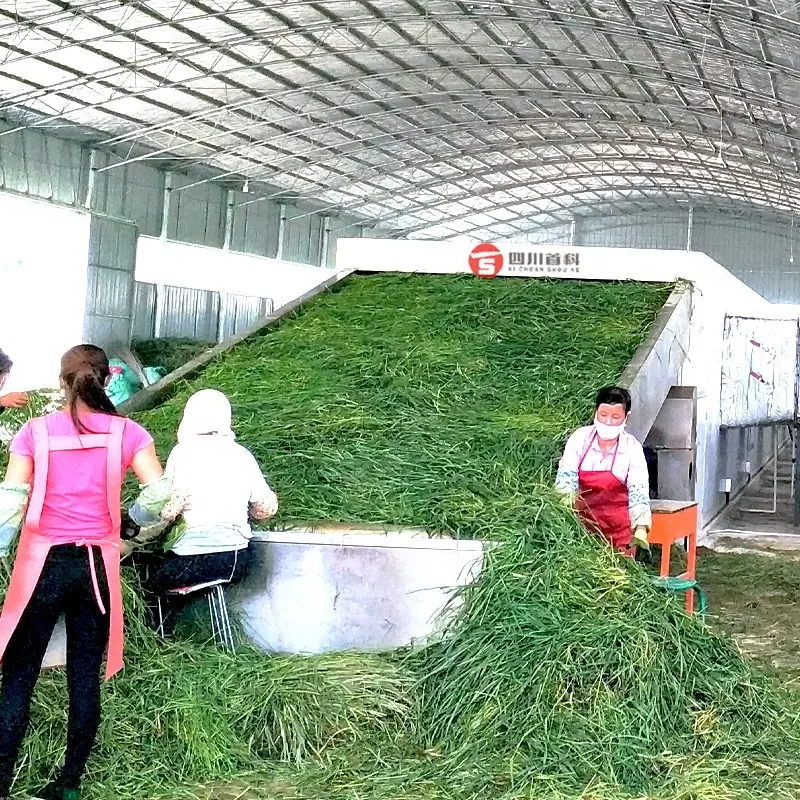

Grass Drying--Shouchuang Mesh Belt Dryer
The mesh belt dryer is an efficient solution for drying forage crops. Utilizing a multi-layer structure, it allows for continuous drying of various grasses, ensuring even heat distribution. With high processing capacity, it can handle large volumes. The design minimizes drying costs while maximizing energy efficiency, ensuring quality retention in the final product. ShouChuang mesh belt dryer is customizable to meet specific requirements, accommodating different materials and environmental conditions, making it a versatile choice for forage drying needs.
Salad Drying Machine Customizedmanufacturing 9
Common Types of Grass That Can Be Dried
Our drying machine effectively enhances the quality and economic value of dried forage, supporting large-scale processing while saving time and energy. Additionally, the drying machine can be paired with clean energy as a heat source, ensuring energy efficiency, environmental friendliness, and higher safety standards. If the materials you are interested in are not listed above, please feel free to contact us for more details.

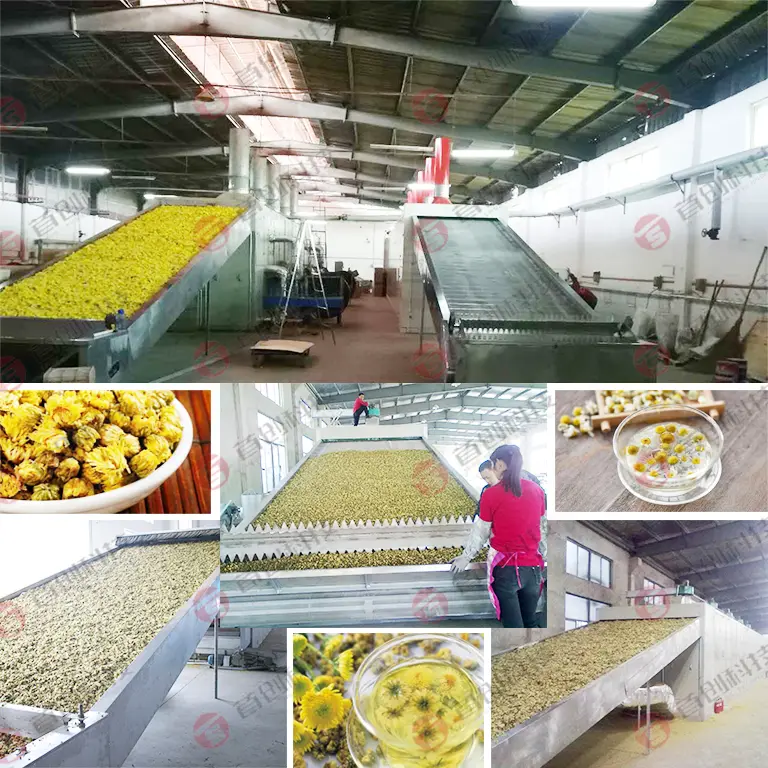

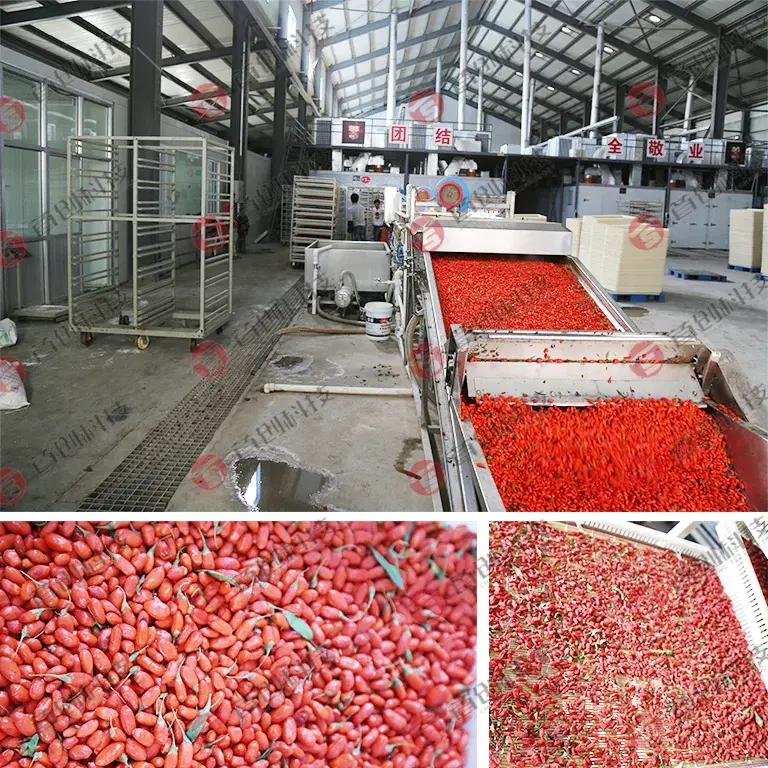

Similar Materials Drying Display

Salad Drying Machine Customizedmanufacturing 10

Multiple Heat Sources Available

The mesh belt dryer offers a variety of heat source options, including heat pumps, natural gas, steam, and coal. This flexibility allows for tailored solutions to meet specific customer needs and operational conditions. Each heat source presents unique advantages in terms of efficiency, cost-effectiveness, and environmental impact.
Salad Drying Machine Customizedmanufacturing 11
Product Details
Working principle
The dryer is a dynamic-drying multi-layer mesh belt dryer. The mesh belt dryer through the air supply system to the air according to the material drying process requirements into the drying room.At the same time, the material through the automatic laying device, cleaning machine, slicing machine, lifting machine into the drying room, and in the drying room along the horizontal direction to do section rotation, do "S" shaped operation, while the hot air vertically through the material, high heat transfer efficiency, so as to achieve the purpose of drying material pieces.
Components Advantages
1. Feeding Conveyor
304 stainless steel food-grade conveyor mesh belt is available in customizable materials and apertures. The default size is 12 mesh with a wire diameter of 0.5 mm;
2. Paving Device
The patented design prevents raw materials from piling up at the feeding port, ensuring consistent material color and drying effect;
3. Dehumidification Device
Unique patented design, customized moisture removal method, fast water removal, reduced energy consumption and drying time;
4. External Air Duct
The innovative waste heat recovery system connects the main fan and dehumidification fan via air pipes, allowing simultaneous water removal and heat recycling
5. Internal Structure
Invention patent design, multi temperaturezone pipe network air supply structure torealize layered and segmented air supply;
6. Air Fan
The fan is manufactured by fully automatic robotand designed by precise size of laser cuttingmachine imported from Germany;
7. Control System
Can realize remote control oftemperature control speed, data control ofmobile terminal and one key switch of the machine;
8. Discharge Device
Fully automatic design, materials automatically drop and transport after processing, customers can decide to bag or the next step of processing.
Salad Drying Machine Customizedmanufacturing 12
Mesh Belt Machine Parameter
Due to different material types and different material forms, the number of layers and length of the mesh belt machine need to be designed according to the specific material processing capacity and the specific floor space. Under normal circumstances, the maximum processing capacity, such as fruit peel, can reach 100 tons per day, the highest number of mesh belt machine layers can reach 8 layers, and the longest length is 50 meters;
Model
5HDW4-6
5HDW4-8
5HDW4-10
Other Size
Mesh belt layers
4 layers
4 layers
4 layers
4 layers
Use temperature ( ℃)
30-80
30-80
30-80
30-80
Paving thickness( mm)
30-120
30-120
30-120
30-120
Belt width( mm)
1840/2760
1840/2760
1840/2760
1840/2760
Total Power(Kw)
18-33
33-44
40.5-49
Customized
Effective drying area(m3 )
39
53
67
Customized
Operating temperature
40-85℃
Overall Dimension (mm)
16000*8000*3200
18000*8000*3200
20000*8000*3200
Customized
Drying cycle (hours)
1-15h/coutinous drying
control method
PLC cotrol system
Conveyor belt material
SS304 or according to the drying materials to choose
Material Description
The parts in contact with the material are all 304 stainless steel or food grader rubber strips
Mesh Belt Dryer's Application
Moreover, our belt-type drying machine is also capable of drying a variety of materials, including fruits, vegetables, spices, herbs, nuts, coffee beans, fruit pomace, and coffee grounds, etc.
Salad Drying Machine Customizedmanufacturing 13
Company Introduction
Salad Drying Machine Customizedmanufacturing 14
Company Profile
Founded in 1972, Sichuan Shouchuang is one of the largest agricultural machinery manufacturers in China and a national high-tech enterprise. Relying on a large number of experimental support and data analysis, we have established a database of more than 400 kinds of materials, customized drying process design for customers' pain points and difficulties, and landed more than 1000 million projects. Our factory advantages are as follows:
50 + years of drying experience; 200+ managers, sales and technicians; 30000+ square meter factory area; 3+ manufacturing bases (Sichuan, Foshan, Guizhou province);400+ material's database; 70+ national patents and software copyrights;60+ exported to about 60 countries; 6000+ domestic and foreign customer cases;
Salad Drying Machine Customizedmanufacturing 15
Drying Solutions Available
We can provide drying solutions in different dimensions, from small scale drying operations and initial product drying to deep drying and intelligent factory drying;
Small-scale Operations Solutions:Having multiple product lines to meet different types of needs;
Business Solutions :Provide solutions from initial drying to deep drying for various products;
Industrial Solutions:Analyze the local market data and provide suggestions on the layout of the drying industry in line with the development advantages;
Intelligent Factory Solution:Virtual simulation,3D mapping, traceability MES, ERP, PLM;
Salad Drying Machine Customizedmanufacturing 16
About Mesh Belt Dryer Installation
For the installation of the mesh belt dryer machine, we can provide the following three ways: 1. Sending its own professional installation engineers: This method is suitable for most customers; 2. Telephone and video installation guidance: This method is suitable for customers with professional engineers; 3. Local agent professional installation engineer: This method is suitable for the local qualified to become the first network belt machine agent; Note: Recruit global agents Agent qualification requirements: 1. Purchased and used the shouchuang mesh belt dryer 3 or more; 2. Own engineer team that can install dryer; If you are interested in this and meet the above two points, please contact us!
Packing&Shipping
According to the transportation distance and different modes of transportation, choose the nude, fixed packaging or hardcover to reduce the transportation cost and increase the customer experience, so as to better complete the transportation delivery.
Salad Drying Machine Customizedmanufacturing 17


Company Advantage

• Our company has experienced technicians and excellent R&D personnel to create products. As for the market, our professional sales staff and responsible service personnel would provide you with our best products and services.
• The traffic convenience and advantageous geographic location create a broad prospect for ShouChuang's business development.
• In recent years, ShouChuang has been carrying out the online sales model. The sales scope has been rapidly expanding, and the annual sales volume has been rising.
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
